Drum Brakes Removed

Tires mounted

Close Ups

Steering Pictures

Do these tires make my Rears look fat?

Front view of the axle and tires , just trying to get an idea of size and position. Working on de-braking the drum and pads and brakes and plan to run a pinion brake instead

The rears are real wide also, I hope this will not be a problem. I think it will look bad ass.

Close Up

This looks like an Axletech display unit that they would have taken to trade shows trying to sell them for the new ASV that Cadillac Gage was developing for the Government in 2007-08

Finished axle before they slop paint all over them, I wish ours looked that clean and sweet.
This axle is the newer 2010 + version with disc brakes and made a little lighter in weight and size.

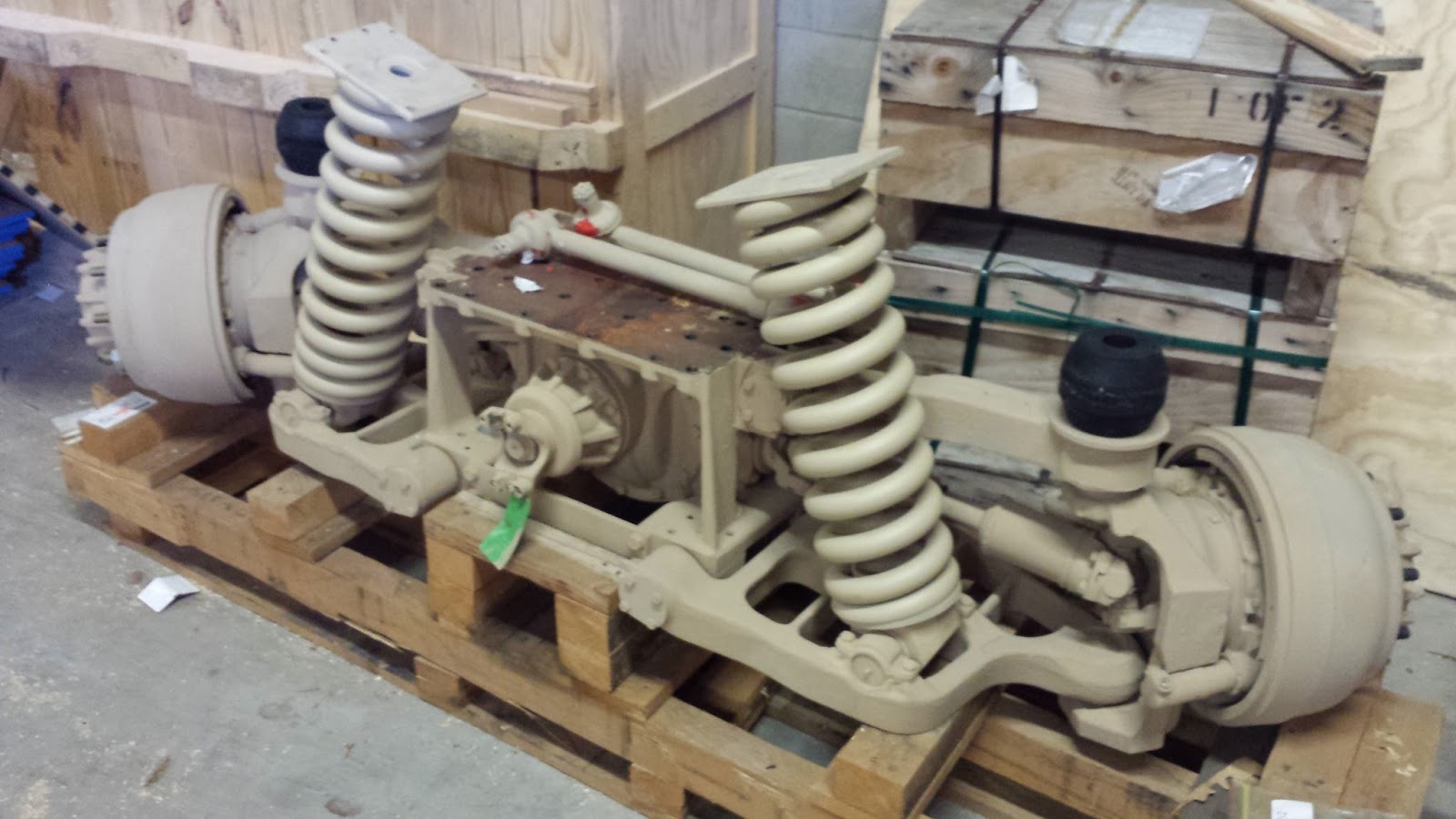

Unloading the Goods

Picking Up the Goods

M1117 Guardian ASV
